Joint hose installation note

  1. Install the joint hose as shown in the figure.

    Fuel tank side

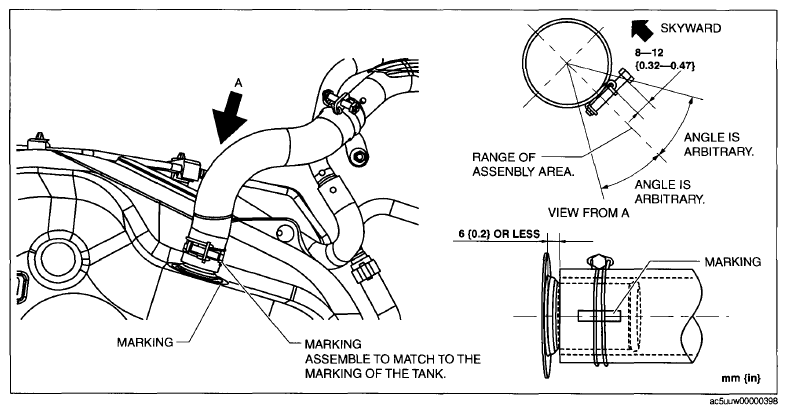

    Fig 1: Checking Joint Hose Installation Position - Fuel Tank Side
    G09074869Courtesy of MAZDA MOTORS CORP.

    Fuel-filler pipe side

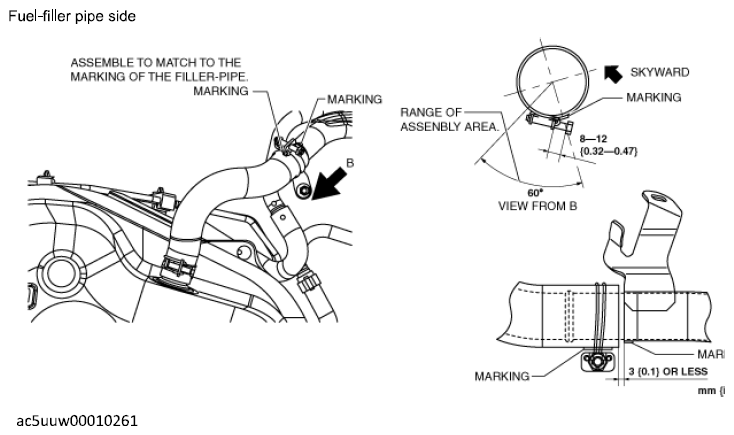

    Fig 2: Checking Joint Hose Installation Position - Fuel-Filler Pipe Side
    G12184327Courtesy of MAZDA MOTORS CORP.
