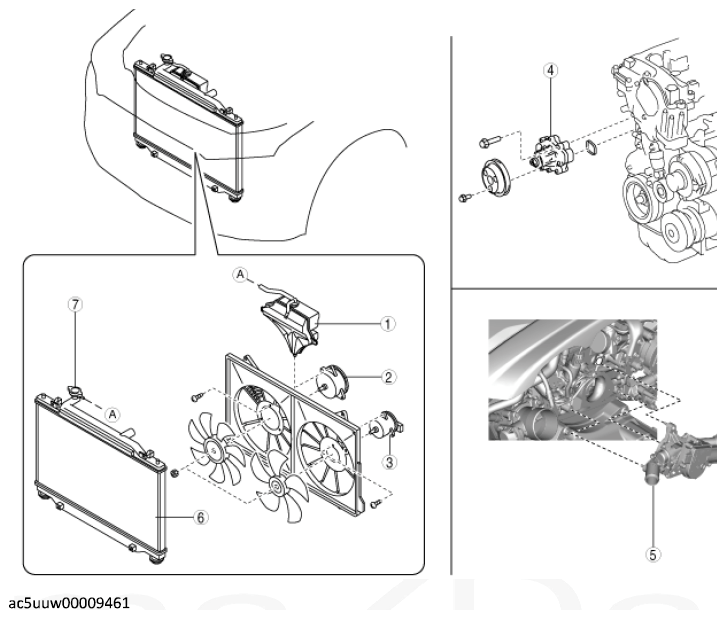

Cooling System Location Index
COMPONENT DESCRIPTION
| 1 | Coolant reserve tank (See Engine Coolant Level Inspection .) (See Coolant Reserve Tank Removal/Installation .) |
| 2 | Cooling fan motor No. 2 (See Cooling Fan Motor Removal/Installation .) (See Cooling Fan Motor Inspection .) |
| 3 | Cooling fan motor No. l (See Cooling Fan Motor Removal/Installation .) (See Cooling Fan Motor Inspection .) |
| 4 | Water pump (See Water Pump Removal/Installation .) |
| 5 | Coolant control valve (See Coolant Control Valve Removal/Installation .) (See Coolant Control Valve Inspection .) |
| 6 | Radiator (See Engine Coolant Protection Inspection .) (See Engine Coolant Replacement .) (See Engine Coolant Leakage Inspection .) (See Radiator Removal/Installation .) |
| 7 | Cooling system cap (See Cooling System Cap Inspection .) |
