Coolant Reserve Tank Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

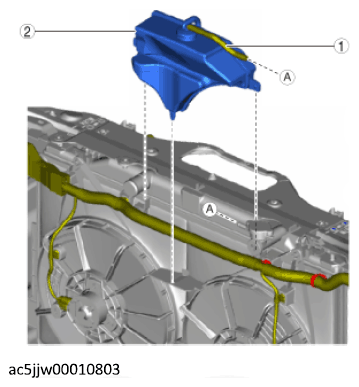

    Fig 1: Coolant Reserve Tank And Hose
    G12184198Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Hose
    2 Coolant reserve tank
    (See Coolant Reserve Tank Removal Note .)
