Upper Radiator Hose Installation Note

Install the upper radiator hose using the following procedure:
1. Tighten the bolt shown in the figure.

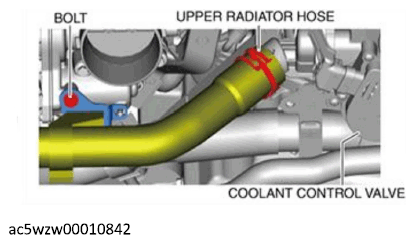

  Fig 1: Upper Radiator Hose, Coolant Control Valve And Bolt
  Courtesy of MAZDA MOTORS CORP.

  Tightening torque

  8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
2. Connect the upper radiator hose to the coolant control valve so that the projection position is aligned with the mark.

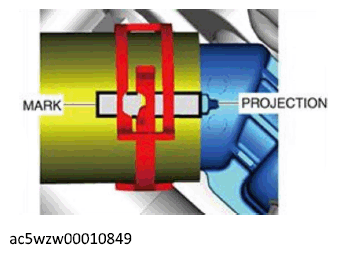

  Fig 2: Mark On Upper Radiator Hose
  Courtesy of MAZDA MOTORS CORP.
