Heater Hose Installation Note
Connect the heater hose to the coolant control valve so that the projection position is aligned with the mark.

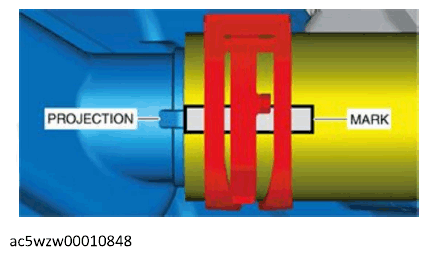

Fig 1: Mark On Heater Hose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
