Coolant Control Valve Removal Note

  1. Disconnect the connector shown in the figure.

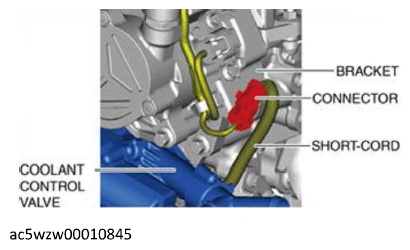

    Fig 1: Coolant Control Valve, Bracket, Connector And Short-Cord
    G12184191Courtesy of MAZDA MOTORS CORP.
  2. Remove the clip shown in the figure.

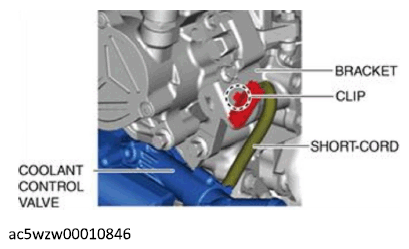

    Fig 2: Coolant Control Valve, Bracket, Clip And Short-Cord
    G12184192Courtesy of MAZDA MOTORS CORP.
  3. Remove the coolant control valve.
  4. When replacing the engine coolant control valve, remove ECT sensor No. 2. (See Engine Coolant Temperature (ECT) Sensor Removal/Installation .)
