Check Valve Inspection

  1. Remove the breather pipe. (See Fuel Tank Removal/Installation .)
  2. Verify that there is airflow when positive pressure is applied to port A.

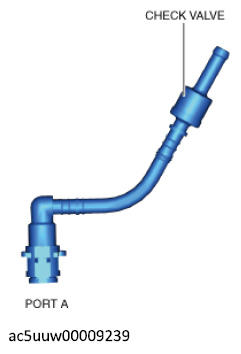

    Fig 1: Checking Check Valve
    G12184411Courtesy of MAZDA MOTORS CORP.
  3. Verify that there is airflow when negative pressure is applied to port A.
