Transfer Location Index

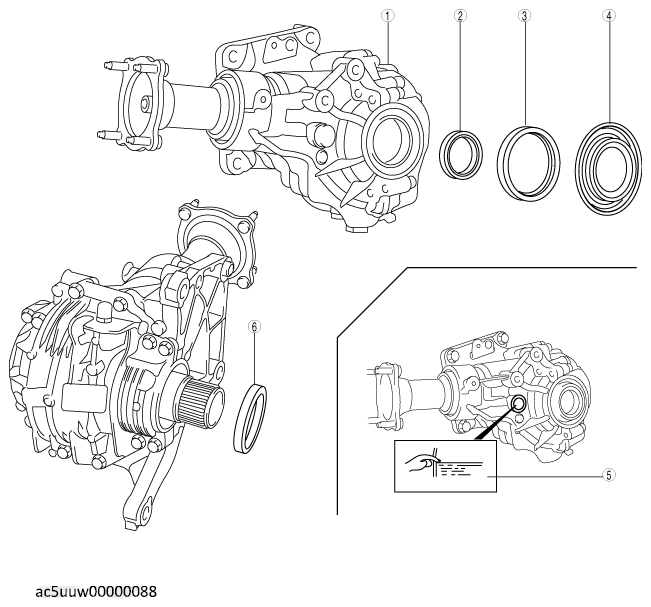

Fig 1: Transfer Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Transfer (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] .)
2	Transfer oil seal (RH) No. 3 (See Transfer Oil Seal Replacement .)
3	Transfer oil seal (RH) No. 2 (See Transfer Oil Seal Replacement .)
4	Transfer oil seal (RH) No. 1 (See Transfer Oil Seal Replacement .)
5	Transfer oil (See Transfer Oil Inspection .) (See Transfer Oil Seal Replacement .)
6	Transfer oil seal (LH) (See Transfer Oil Seal Replacement .)
