Symptom Troubleshooting - Automatic Transaxle
>>
Quick Diagnosis Chart
Quick Diagnosis Chart

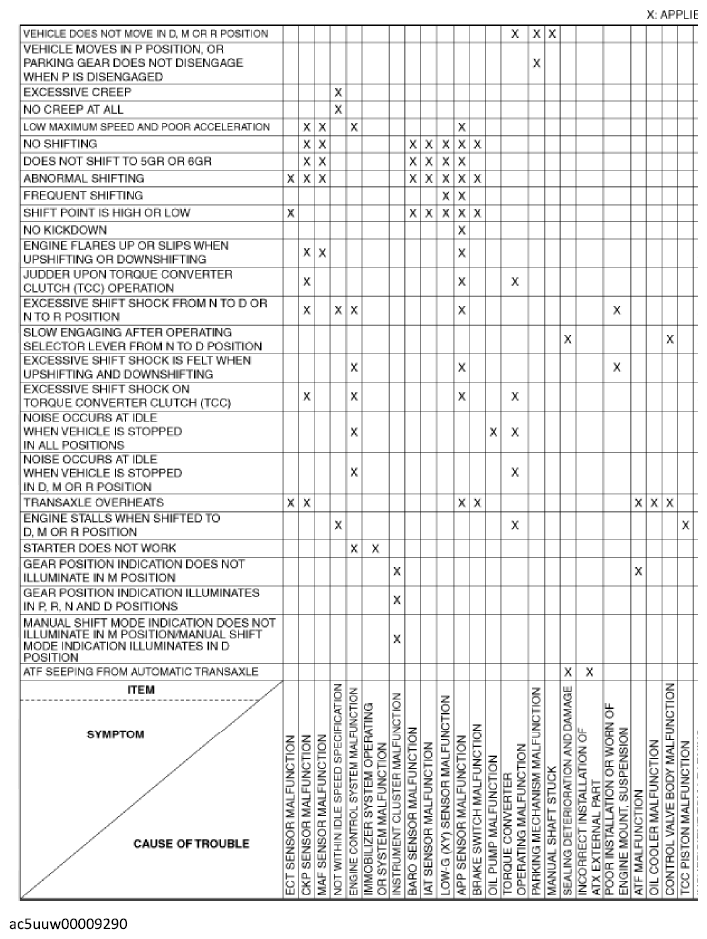

Fig 1: Quick Diagnosis Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
