Steering Shift Switch Removal/Installation
WARNING:
- Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
- Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

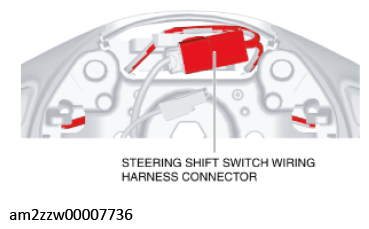

- Disconnect the steering shift switch wiring harness connector.

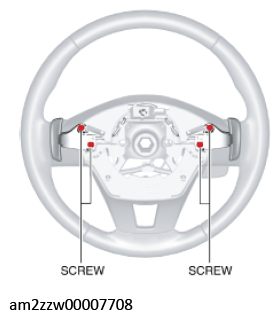

- Remove the screw.

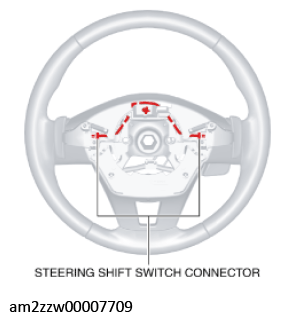

- Disconnect the steering shift switch connector.

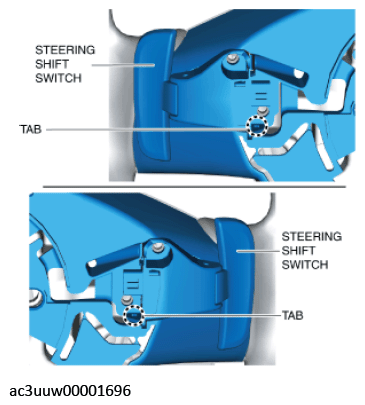

- Release the tab shown in the figure and remove the steering shift switch.
- Using a precision flathead screwdriver, release the tab.

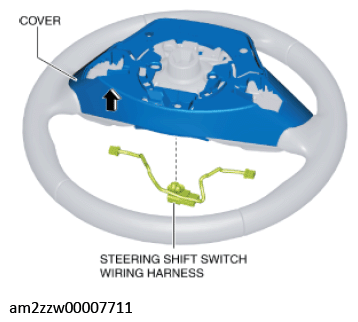

- Lift the steering wheel cover up using your hand and remove the steering shift switch wiring harness from the clearance.
- Install in the reverse order of removal.
