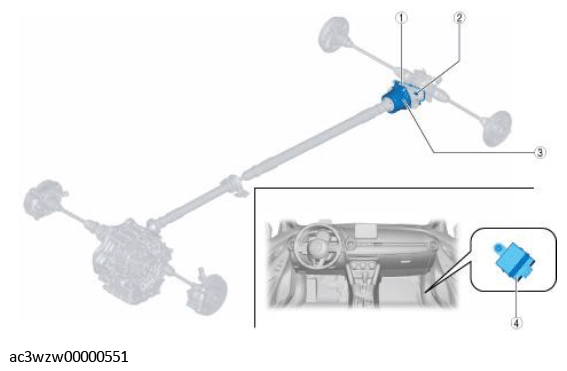

Electronic AWD Control System Location Index
WARNING: This page is about a different variant/trim than selected.
COMPONENT DESCRIPTION
| 1 | AWD solenoid (See AWD SOLENOID INSPECTION .) |
| 2 | Differential oil temperature sensor (See DIFFERENTIAL OIL TEMPERATURE SENSOR INSPECTION .) (See DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION .) |
| 3 | Coupling component (See COUPLING COMPONENT REMOVAL/INSTALLATION .) (See COUPLING COMPONENT CALIBRATION DATA WRITING .) |
| 4 | AWD control module (See AWD CONTROL MODULE INSPECTION .) (See AWD CONTROL MODULE REMOVAL/INSTALLATION .) (See AWD CONTROL MODULE CONFIGURATION .) |
