Air Hose Installation Note

  1. Install the air hose as shown in the figure.

    Throttle body side

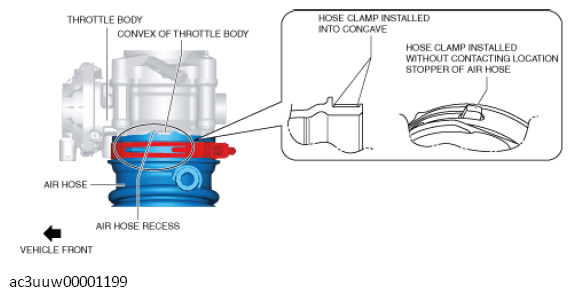

    Fig 1: Air Hose Installation Position - Throttle Body Side
    G11437047Courtesy of MAZDA MOTORS CORP.

    Air cleaner side

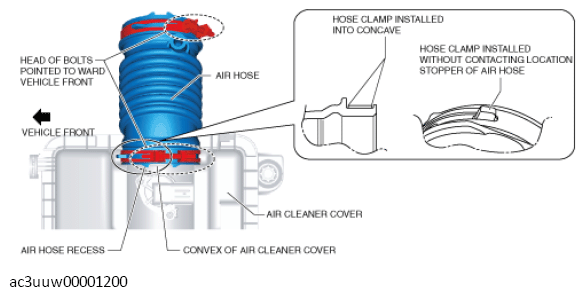

Fig 2: Air Hose Installation Position - Air Cleaner Side
G11437048Courtesy of MAZDA MOTORS CORP.
