Air Cleaner Cover Installation Note

  1. Install the air cleaner cover as shown in the figure.
    Fig 1: Installing Air Cleaner Cover
    G11274501Courtesy of MAZDA MOTORS CORP.
  2. Secure the air cleaner cover and the air cleaner case with the clip.

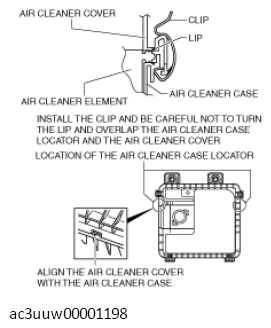

Fig 2: Securing Air Cleaner Cover And Air Cleaner Case With Clip
G11437046Courtesy of MAZDA MOTORS CORP.
