Home >> Mazda >> 2018 >> CX-3 Touring, FWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Intake-Air System >> Air Cleaner Element Removal/Installation >> Notes

Air Cleaner Element Removal/Installation: Notes

  1. Remove the air cleaner element as shown in the figure.

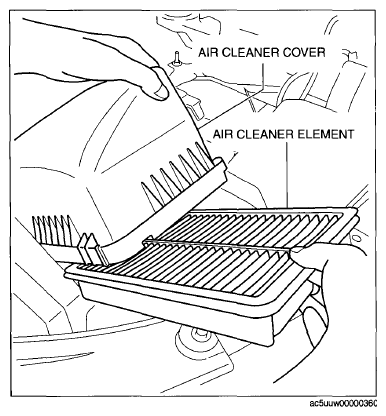

    Fig 1: Removing Air Cleaner Element
    G09074410Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal. (See Air Cleaner Cover Installation Note .)
