Engine Front Cover Removal Note

  1. Remove the nut shown in the figure and set the cooler hose (LO) aside.

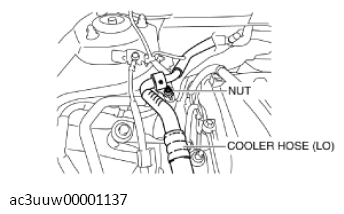

    Fig 1: Cooler Hose (Low) And Nut
    G11437313Courtesy of MAZDA MOTORS CORP.
  2. Remove the insulator shown in the figure.

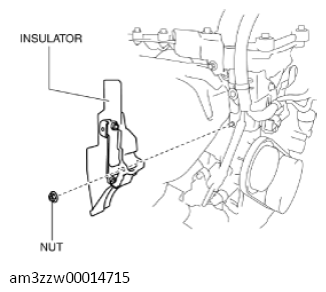

    Fig 2: Insulator And Nut
    G11437314Courtesy of MAZDA MOTORS CORP.
  3. Set the ground cable and wiring harness bracket shown in the figure aside.

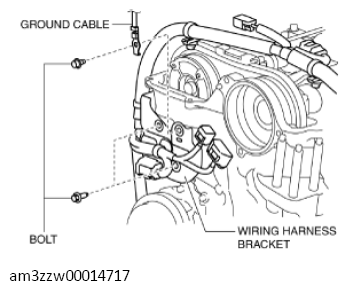

    Fig 3: Ground Cable And Wiring Harness Bracket With Bolts
    G11437315Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine front cover installation bolts.
  5. Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
    CAUTION:
    • Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
    • Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.
Fig 4: Peeling Sealant Using Screwdriver Wrapped In Cloth
G09785099Courtesy of MAZDA MOTORS CORP.
Fig 5: Removing Engine Front Cover
G11429951Courtesy of MAZDA MOTORS CORP.
