No. 4 Engine Mount: Notes

CAUTION:

Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the bolts shown in the figure and set the ground cable aside.

Fig 1: No. 4 Engine Mount Bracket, Ground Cable And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

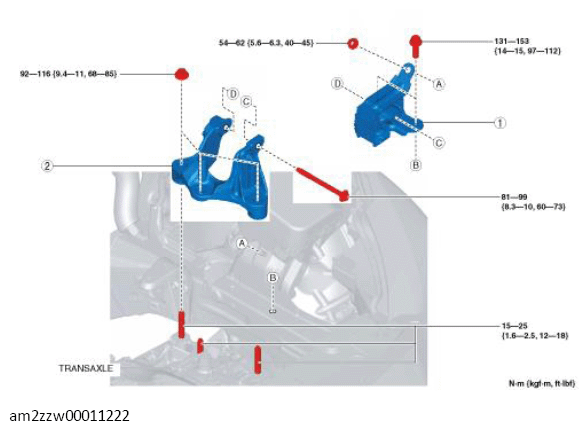

Fig 2: No. 4 Engine Mount Related Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 4 engine mount rubber (See No. 4 engine mount rubber removal note .) (See No. 4 engine mount rubber installation note .)
2	No. 4 engine mount bracket (See No. 4 engine mount bracket removal note .) (See No. 4 engine mount bracket installation note .)
