Engine Disassembly/Assembly: Notes

CAUTION:
  • When the transaxle is installed, do not suspend the engine. Otherwise, the SST installation area of the cylinder head may be damaged due to excess weight. Only suspend the engine after separating the engine and transaxle.
  • Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.

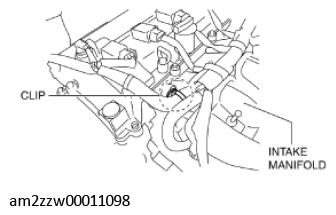

  1. To enable to install the SST, disconnect the clip shown in the figure and set the wiring harness aside.
    Fig 1: Intake Manifold And Clip
    G11437160Courtesy of MAZDA MOTORS CORP.
  2. Install the SST and the following bolt to the position shown in the figure.

    Engine front side

    Fig 2: Installing SST On Engine Front Side
    G09785247Courtesy of MAZDA MOTORS CORP.

    Engine rear side

    Fig 3: Installing SST On Engine Rear Side
    G09785248Courtesy of MAZDA MOTORS CORP.

    Bolt:

    part number 99794 1025 or an M10 x 1.25, length 25 mm {0.98 in}

    Tightening torque

    38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}

  3. Engage the hooks of the SST (49 L017 5A0) to the SST (49 UN30 3050).
    Fig 4: Engaging Hooks Of SST
    G09785249Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not lift up the engine.
  4. To ensure the safety of the work (control engine and transaxle sway), set a hoist as shown in the figure.
    Fig 5: Caution - Do Not Lift Up Engine
    G09785250Courtesy of MAZDA MOTORS CORP.
  5. Remove the insulator shown in the figure.
    Fig 6: Insulator And Bolts With Torque Specification
    G09785251Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  7. Remove the bolts in the order shown in the figure, then remove the exhaust manifold bracket.
    Fig 7: Exhaust Manifold Bracket Bolts Loosening Sequence
    G11437166Courtesy of MAZDA MOTORS CORP.
    • When installing, install the exhaust manifold bracket using the following procedure:
    1. Temporarily tighten the exhaust manifold bracket installation bolts in the order as shown in the figure.
      Fig 8: Exhaust Manifold Bracket Installation Bolts Tightening Sequence
      G11437167Courtesy of MAZDA MOTORS CORP.
    2. Loosen the bolt shown in the figure until it is no longer seated on the surface.
      Fig 9: Exhaust Manifold Bracket, Transaxle, Cylinder Block And Bolt
      G11437168Courtesy of MAZDA MOTORS CORP.
    3. Tighten the bolt in the order shown in the figure.
    Fig 10: Exhaust Manifold Bracket Bolts Tightening Sequence
    G11437169Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}

  8. Remove the bracket No. 1 (drive shaft bracket). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  9. Remove the transfer bracket and transfer. (4WD) (See TRANSFER REMOVAL/INSTALLATION .)
  10. Remove the starter. (See STARTER REMOVAL/INSTALLATION .)
  11. Fix the drive plate using the crankshaft pulley lock bolt.
  12. Remove the torque converter installation nut from the starter installation hole. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] (2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] (4WD).)
  13. Disconnect the engine and transaxle, and lower only the engine from the engine lifter. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] (2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] (4WD).)
  14. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  15. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  16. Remove the oil separator. (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .)
  17. Remove the KS. (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
  18. Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
  19. Remove the camshaft position (CMP) sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
  20. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION .)
  21. Remove the high pressure fuel pump and rear housing. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)
  22. Remove the electric variable valve timing motor/driver. (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)
  23. Remove the oil filter. (See OIL FILTER REPLACEMENT .)
  24. Remove the oil cooler. (if equipped) (See OIL COOLER REMOVAL/INSTALLATION .)
  25. Remove the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
  26. Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
  27. Remove the dipstick.
  28. Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
  29. Remove the wiring harness bracket shown in the figure.
    Fig 11: Electric Variable Valve Timing Motor/Driver, Wiring Harness Bracket And Bolts With Torque Specification
    G09074332Courtesy of MAZDA MOTORS CORP.
  30. Remove the emission harness.
  31. Remove the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  32. Remove the water inlet pipe. (See CYLINDER HEAD GASKET REPLACEMENT .)
  33. Remove the water pump. (See WATER PUMP REMOVAL/INSTALLATION .)
  34. Remove in the order indicated in the table.
  35. Assemble in the reverse order of disassembly.
