Engine rear side

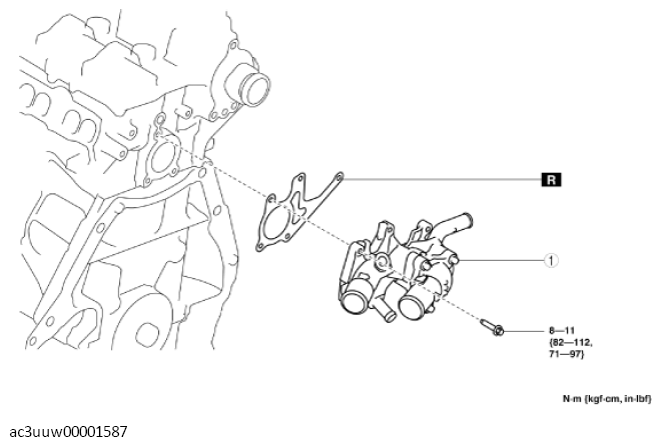

Fig 1: Engine Related Components With Torque Specification - Engine Rear Side
G11437172Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Water outlet component
(See Water Outlet Component Installation Note .)
