Exhaust System Removal/Installation: 2WD: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Remove the exhaust system insulator. (See Exhaust system insulator removal/installation .)
Install in the reverse order of removal.

Step 1

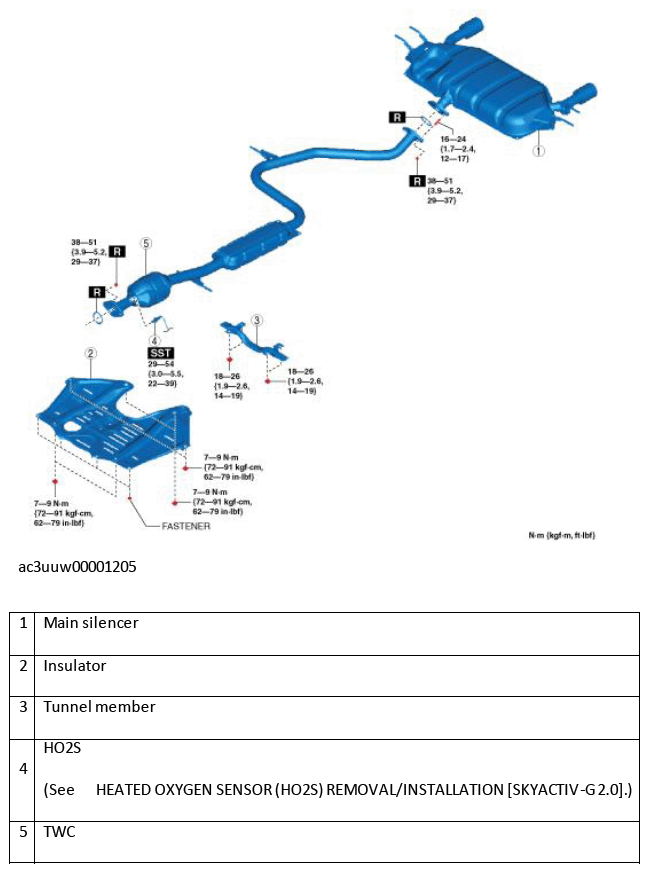

Fig 1: Exhaust System Related Components With Torque Specification - 2WD (Step 1)

Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Exhaust System Related Components With Torque Specification - 2WD (Step 2)

Courtesy of MAZDA MOTORS CORP.
