Oil Pump Installation Note

Install the oil pump using the following procedure:
1. Temporarily tighten the three bolts shown in the figure.

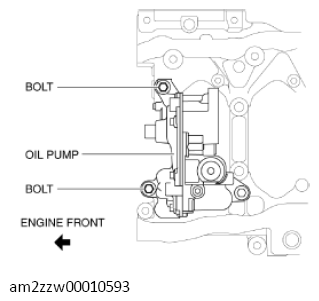

  Fig 1: Oil Pump And Bolts Location
  Courtesy of MAZDA MOTORS CORP.
2. Tighten the two bolts shown in the figure to the specified torque.

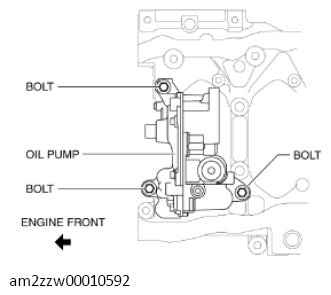

  Fig 2: Oil Pump And Bolts Tightening Order
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - The tightening order for the two bolts is optional.
  Tightening torque

  20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
3. Finally, tighten the bolt shown in the figure to the specified torque.

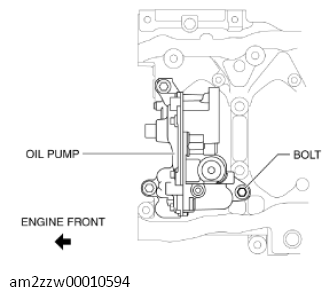

Fig 3: Oil Pump And Bolt
Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
