Coolant Reserve Tank Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

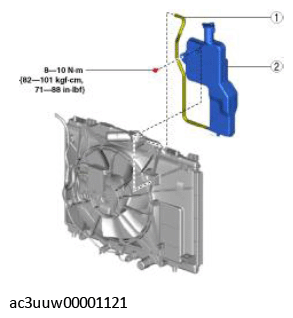

Fig 1: Coolant Reserve Tank, Hose And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Hose
2	Coolant reserve tank (See Coolant Reserve Tank Installation Note .)
