Replacing Active Driving Display as Single Component: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Remove the screws.

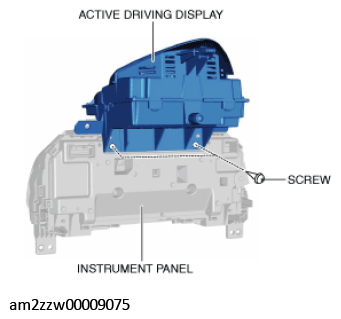

    Fig 1: Removing Active Driving Display Screws
    G11434385Courtesy of MAZDA MOTORS CORP.
  4. While pressing the instrument cluster tabs in the direction of arrows (1) shown in the figure, pull the wiring harness in the direction of arrow (2) and disconnect the wiring harness from the instrument cluster.

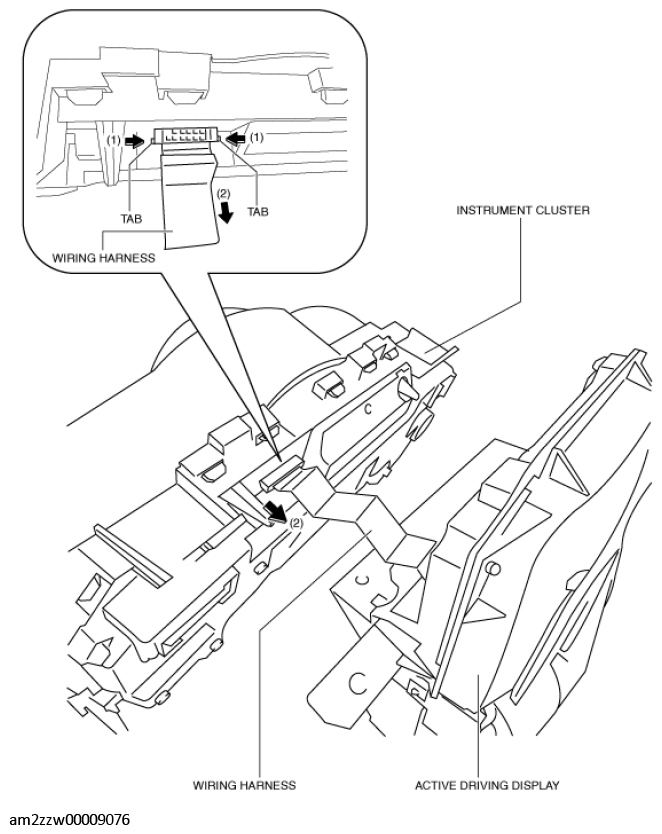

    Fig 2: Pressing Instrument Cluster Tabs
    G11434386Courtesy of MAZDA MOTORS CORP.
  5. Remove the active driving display.
  6. Install in the reverse order of removal. (See Active Driving Display Installation Note .)
