Relay And Fuse Block Removal/Installation: Installation

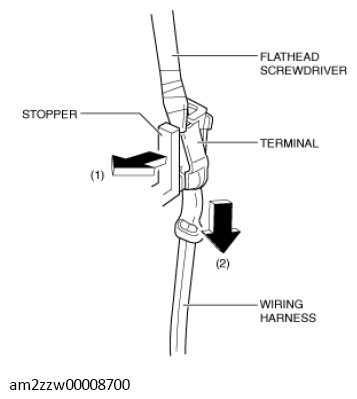

  1. While pressing the stopper using a tape-wrapped flathead screwdriver in the direction of the arrow (1) shown in the figure, pull the wiring harness in the direction of the arrow (2) shown in the figure to detach the fuse terminal from the stopper.
    Fig 1: Detaching Fuse Terminal From Stopper
    G11472470Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the relay and fuse block, line up the relay and fuse blocks of old and new parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.
    • A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.
  2. Relocate all relay and fuse terminals to the new relay and fuse block.
    Fig 2: Relocating Relay And Fuse Terminals To Relay And Fuse Block
    G11472471Courtesy of MAZDA MOTORS CORP.

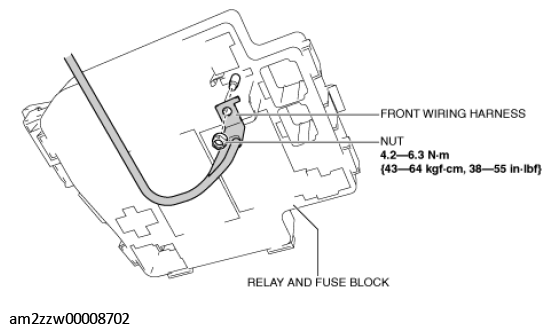

  3. Install the front wiring harness.
    Fig 3: Installing Front Wiring Harness
    G11472472Courtesy of MAZDA MOTORS CORP.
  4. Install the nut.

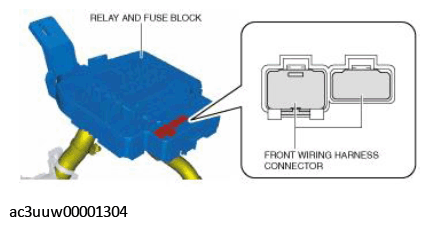

  5. Insert the front wiring harness connectors into the relay and fuse block.
    Fig 4: Inserting Front Wiring Harness Connectors
    G11472473Courtesy of MAZDA MOTORS CORP.
  6. Install the wiring harness clip to the relay and fuse block lower cover No. 2.
    Fig 5: Installing Wiring Harness Clip To Relay And Fuse Block Lower Cover No. 2
    G11472474Courtesy of MAZDA MOTORS CORP.
  7. Insert all of the relay and fuse block middle cover tabs into the relay and fuse block lower cover No. 2.
    Fig 6: Inserting Relay And Fuse Block Middle Cover Tabs
    G11472475Courtesy of MAZDA MOTORS CORP.
  8. Install the relay and fuse block lower cover No. 2 to the relay and fuse block middle cover.

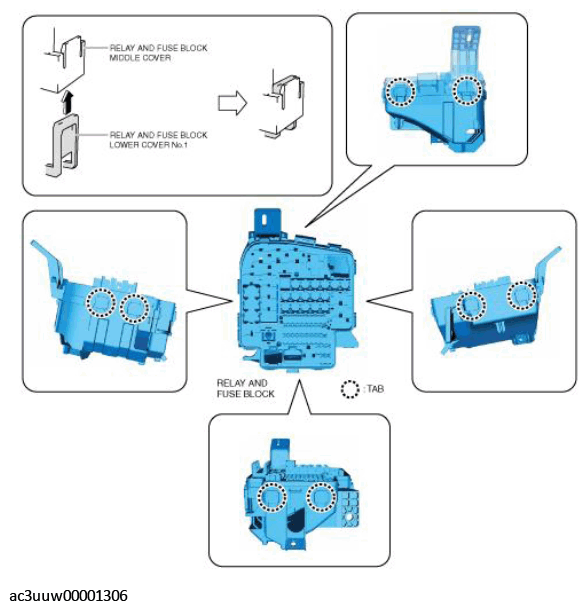

  9. Insert all of the relay and fuse block middle cover tabs into the relay and fuse block lower cover No. 1.
    Fig 7: Inserting All Of Relay And Fuse Block Middle Cover Tabs
    G11472476Courtesy of MAZDA MOTORS CORP.
  10. Install the relay and fuse block lower cover No. 1 to the relay and fuse block middle cover.
  11. Install the wiring harness clips.
    Fig 8: Installing Wiring Harness Clips
    G11472477Courtesy of MAZDA MOTORS CORP.
  12. Insert the relay and fuse block into the stud bolts.
    Fig 9: Inserting Relay And Fuse Block
    G11472478Courtesy of MAZDA MOTORS CORP.
  13. Install the nuts.
    Fig 10: Installing Nuts
    G11472479Courtesy of MAZDA MOTORS CORP.
  14. Connect the emission wiring harness connectors.
    Fig 11: Connecting Emission Wiring Harness Connectors
    G11472480Courtesy of MAZDA MOTORS CORP.

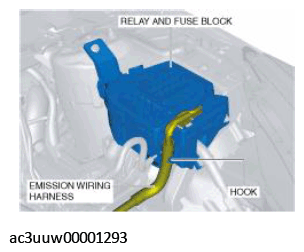

  15. Press the emission wiring harness into the relay and fuse block hook.
    Fig 12: Pressing Emission Wiring Harness
    G11472457Courtesy of MAZDA MOTORS CORP.
  16. Install all the relays and fuses.

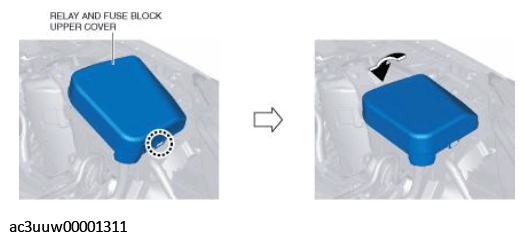

  17. Install the relay and fuse block upper cover.
    Fig 13: Installing Relay And Fuse Block Upper Cover
    G11472482Courtesy of MAZDA MOTORS CORP.
  18. Install the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  19. Install the air cleaner assembly. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  20. Perform the "Verify Relay and Fuse Block Replacement". (See Verify relay and fuse block replacement .)
