Rearview Mirror Removal/Installation

  1. Remove the sensor cover. (with smart city brake support (SCBS)) (See SENSOR COVER REMOVAL/INSTALLATION .)
  2. Loosen the screw.

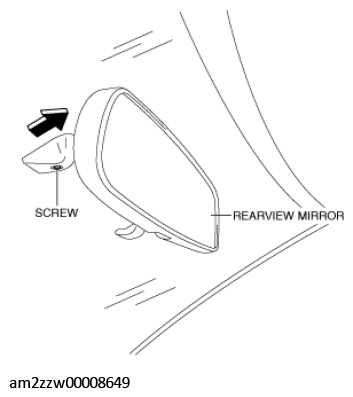

    Fig 1: Loosening Rearview Mirror Screw
    G11434351Courtesy of MAZDA MOTORS CORP.
  3. Pull the rearview mirror in the direction of the arrow shown in the figure.
  4. Install in the reverse order of removal.
