Rear Power Window Motor Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
- Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the front power window motor connector.

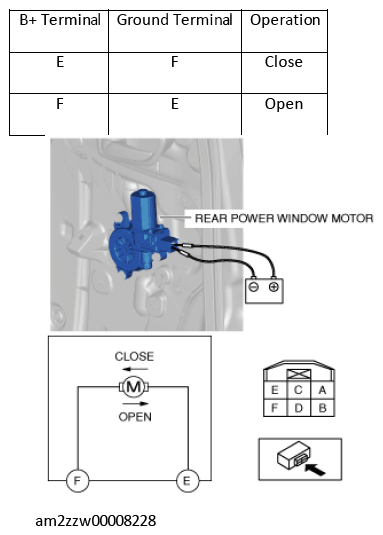

- Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.
- If the rear power window motor does not operate as indicated in the table, replace it. (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
