Cooling System Location Index
WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

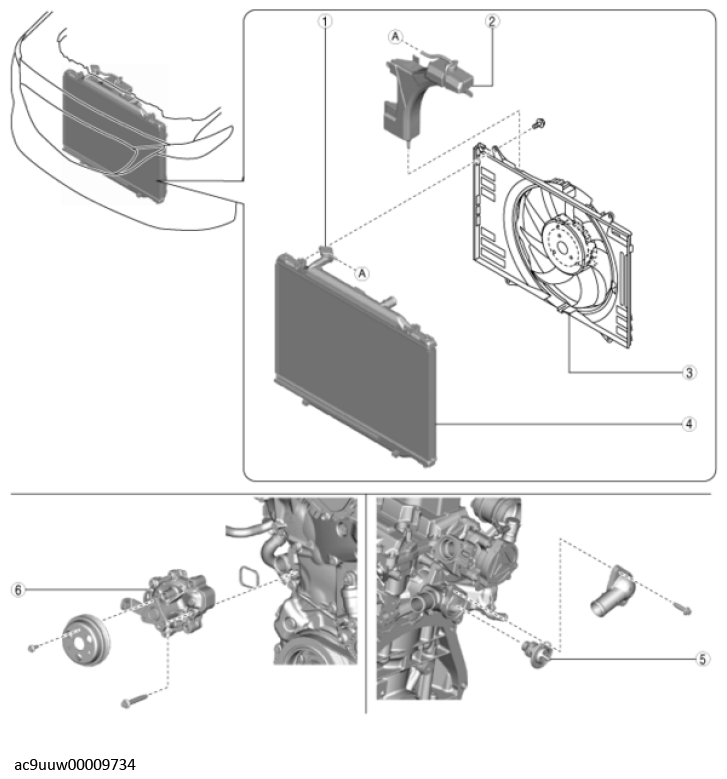

COMPONENT DESCRIPTION
| 1 | Cooling system cap (See Cooling System Cap Inspection .) |
| 2 | Coolant reserve tank (See Engine Coolant Level Inspection .) (See Coolant Reserve Tank Removal/Installation .) |
| 3 | Cooling fan component (See Cooling Fan Motor Removal/Installation .) (See Cooling Fan Motor Inspection .) |
| 4 | Radiator (See Engine Coolant Protection Inspection .) (See Engine Coolant Replacement .) (See Engine Coolant Leakage Inspection .) (See Radiator Removal/Installation .) |
| 5 | Thermostat (See Thermostat Removal/Installation .) (See Thermostat Inspection .) |
| 6 | Water pump (See Water Pump Removal/Installation .) |
