Vacuum Hose Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Between Intake Manifold and Vacuum Pump

Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Pinch open the clamps using pliers and disconnect the vacuum hoses.

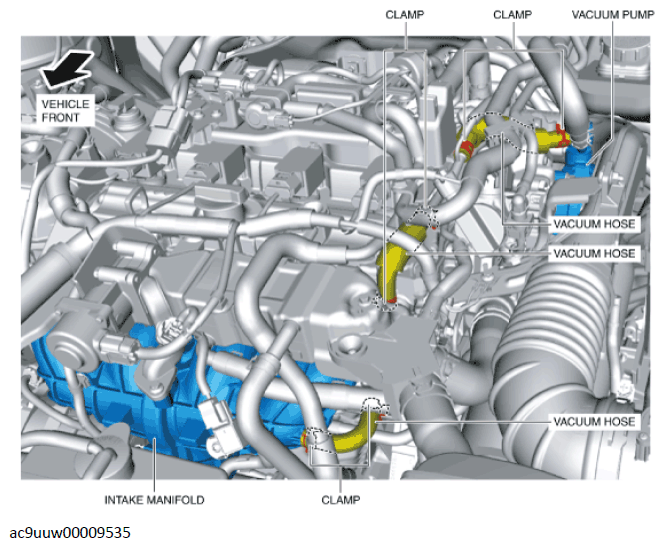

Fig 1: Locating Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See VACUUM HOSE (BETWEEN INTAKE MANIFOLD AND VACUUM PUMP) INSTALLATION NOTE .)
