Vacuum Pump Removal/Installation: Notes
WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
REPLACEMENT PART DESCRIPTION
| O-ring Quantity: 1 Location of use: Vacuum pump |
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)] .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)] .)
- Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)]
.)
- Air hose
- Air cleaner cover
- Air cleaner element
- Fresh-air duct
- Air cleaner case

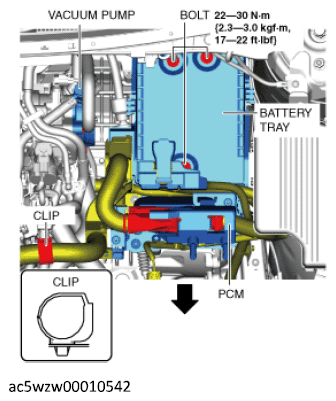

- Disconnect the clip from the bracket.
- Remove the bolts
- Move the battery tray, PCM and wiring harness toward the front of the vehicle to the position where the vacuum pump can be removed.
- Pinch open the clamp using pliers and disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (VIN M)] .)

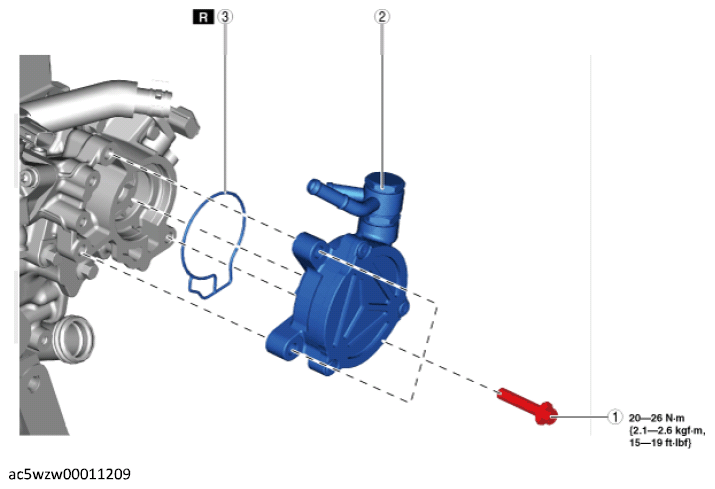

- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT DESCRIPTION
1 Bolt 2 Vacuum pump
(See Vacuum Pump Removal Note .)
(See Vacuum Pump and O-ring Installation Note .)3 O-ring
(See Vacuum Pump and O-ring Installation Note .)
