Lower Radiator Hose Component Removal Note

WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips.

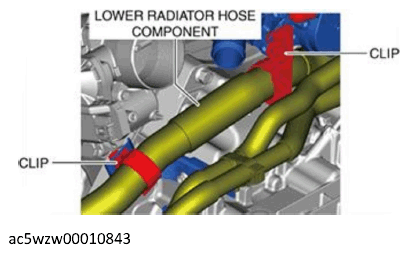

Fig 1: Lower Radiator Hose Component And Clips
Courtesy of MAZDA MOTORS CORP.
Remove the nuts shown in the figure and set the lower radiator hose component aside.

Fig 2: Lower Radiator Hose Component, Coolant Control Valve And Nuts
Courtesy of MAZDA MOTORS CORP.
