Power Liftgate (PLG) Fully Open Position Change

WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Adjustment can only be performed at the top half of power liftgate (PLG) opening.

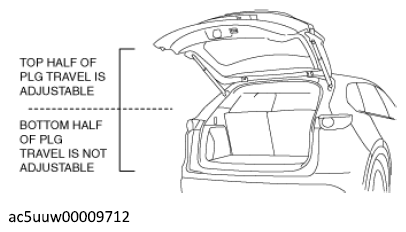

Fig 1: Adjusting Power Liftgate (PLG) Fully Open Position Change
G12187227Courtesy of MAZDA MOTORS CORP.
  1. Stop the power liftgate (PLG) at the optional position.
  2. Press the power liftgate (PLG) rear switch for approx. 3 s.
  3. Verify that the power liftgate (PLG) buzzer is activated two times.
