Section 129 (On-Board Diagnostics - Dynamic Stability Control)
>>
Dynamic Stability Control System Wiring Diagram (Dynamic Stability Control (DSC))
Dynamic Stability Control System Wiring Diagram (Dynamic Stability Control (DSC))
WARNING:
This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

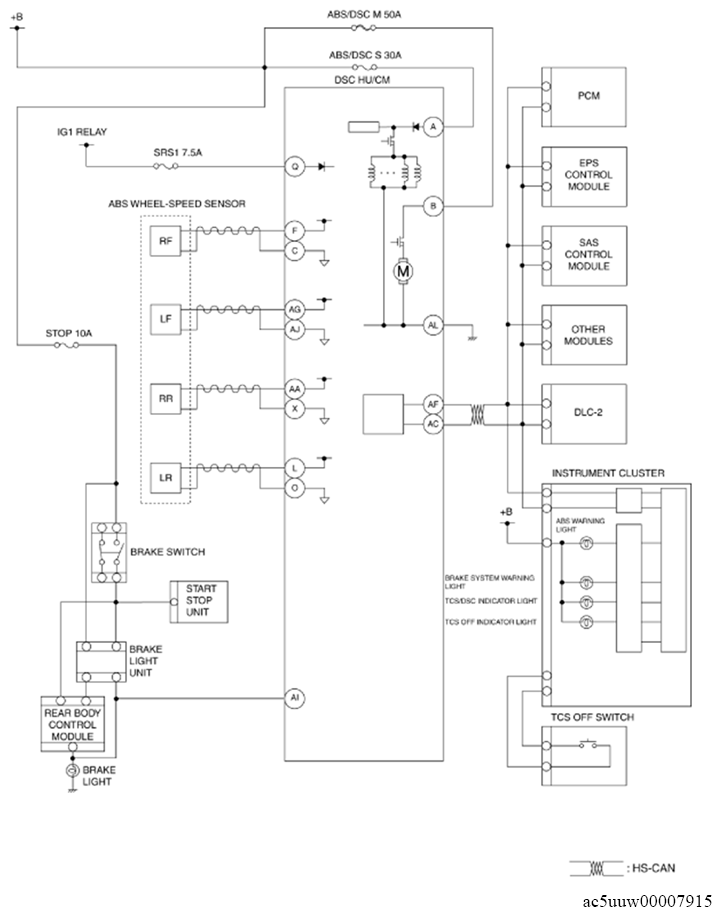

Fig 1: Dynamic Stability Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
