Front Oil Seal Replacement: Notes
WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL SERVICE TOOL DESCRIPTION
| 1.: Mazda SST number 2.: Global SST number |
|||||
| 1: 49 B011 105 2: - Adapter |
1: 49 UN20 5072 2: 205-072 Holder |
1: 49 G028 205 2: - Oil seal installer |
|||
REPLACEMENT PART DESCRIPTION
| Front oil seal Quantity: 1 Location of use: Engine front cover |
OIL AND CHEMICAL TYPE
| Engine oil Type: Recommended oil |
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the drive belt. (See Drive Belt Removal/Installation .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.

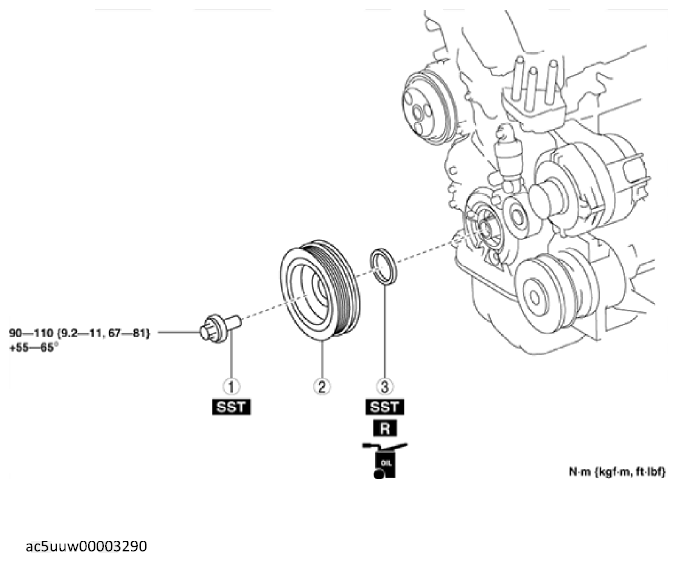

COMPONENT DESCRIPTION1 Crankshaft pulley lock bolt
(See Crankshaft Pulley Lock Bolt Removal Note .)
(See Crankshaft Pulley Lock Bolt Installation Note .)2 Crankshaft pulley 3 Front oil seal
(See Front Oil Seal Removal Note .)
(See Front Oil Seal Installation Note .)
