No. 1 Engine Mount (AWD): Notes

WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the No. 1 engine mount bracket B for (AWD) vehicles, perform the procedure with the transfer completely removed from the transaxle.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

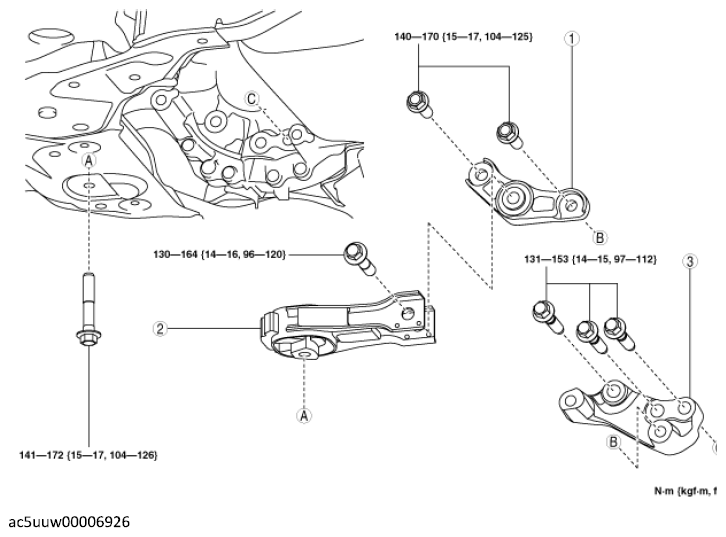

Fig 1: No. 1 Engine Mount Bracket A, No. 1 Engine Mount Rubber, No. 1 Engine Mount Bracket B And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket A (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
3	No. 1 engine mount bracket B (See No. 1 engine mount removal note (AWD) .) (See No. 1 engine mount installation note (AWD) .)
