Engine Location Index

WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

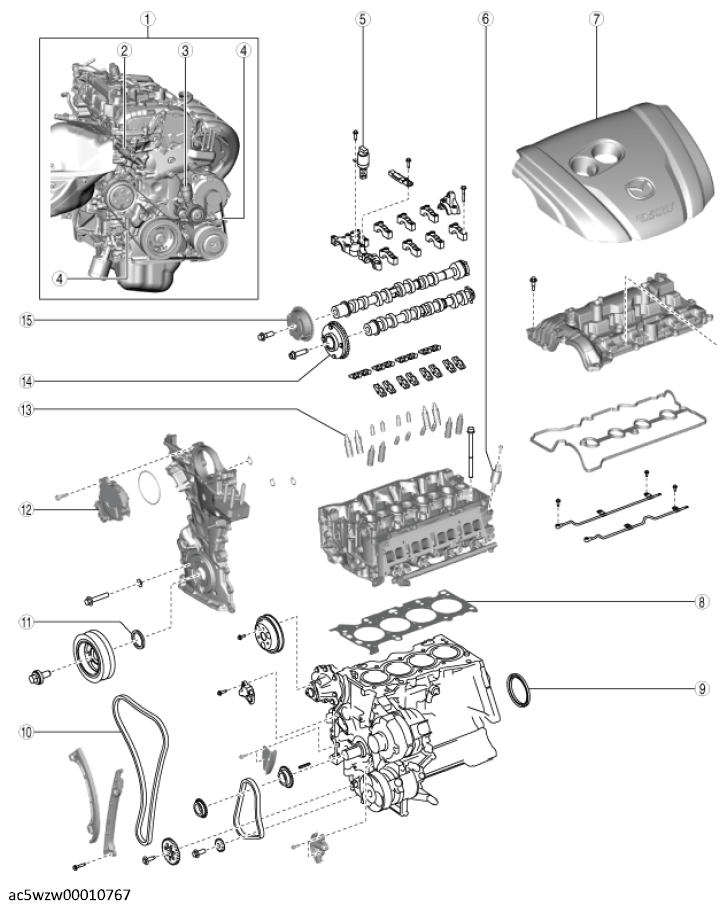

Fig 1: Engine Components

G12188529

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Engine (See Engine Tune-up .) (See Compression Inspection .) (See Engine Mount Disassembly/Assembly .) (See Engine Removal/Installation .) (See Engine Disassembly/Assembly ].)
2	OCV for No. 1 cylinder deactivation (See Oil Control Valve (OCV) For Cylinder Deactivation Removal/Installation .) (See Oil Control Valve (OCV) For Cylinder Deactivation Inspection .)
3	Drive belt auto tensioner (See Drive Belt Auto Tensioner Inspection .) (See Drive Belt Auto Tensioner Removal/Installation .)
4	Drive belt (See Drive Belt Inspection .) (See Drive Belt Removal/Installation .)
5	OCV for hydraulic variable valve timing system (See OCV For Hydraulic Variable Valve Timing System Removal/Installation .) (See OCV For Hydraulic Variable Valve Timing System Inspection .)
6	OCV for No. 4 cylinder deactivation (See Oil Control Valve (OCV) For Cylinder Deactivation Removal/Installation .) (See Oil Control Valve (OCV) For Cylinder Deactivation Inspection .)
7	Plug hole plate (See Plug Hole Plate Removal/Installation .)
8	Cylinder head gasket (See Cylinder Head Gasket Replacement .)
9	Rear oil seal (See Rear Oil Seal Replacement .)
10	Timing chain (See Timing Chain Removal/Installation .)
11	Front oil seal (See Front Oil Seal Replacement .)
12	Electric variable valve timing motor/driver (See Electric Variable Valve Timing Motor/Driver Inspection .) (See Electric Variable Valve Timing Motor/Driver Removal/Installation .)
13	HLA, Switchable HLA (See Hydraulic Lash Adjuster (HLA) Inspection .) (See Hydraulic Lash Adjuster (HLA) Removal/Installation .)
14	Electric variable valve timing actuator (See Electric Variable Valve Timing Actuator Inspection .) (See Electric Variable Valve Timing Actuator, Hydraulic Variable Valve Timing Actuator Removal/Installation .)
15	Hydraulic variable valve timing actuator (See Hydraulic Variable Valve Timing Actuator Inspection .) (See Electric Variable Valve Timing Actuator, Hydraulic Variable Valve Timing Actuator Removal/Installation .)
