No. 1 Blown Fuses

1	BLOWN FUSES

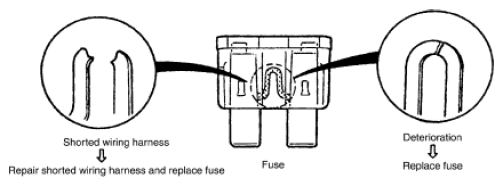

[TROUBLESHOOTING HINTS] Inspect condition of fuse.
Courtesy of MAZDA MOTORS CORP.
Damaged fuse	Related wiring harness
MAIN	FAN3 fuse FUEL PUMP fuse IG2 fuse ENG+B2 fuse ROOM fuse ENG. MAIN fuse INJECTOR fuse EVVT fuse IG1 relay
FAN3	Cooling fan relay
ENGINE IG1	Fuel pump relay PCM
FUEL PUMP	Fuel pump relay
STR	Generator Starter
IG2	ACC relay Starter relay
ROOM	ENG+B fuse
ENG+B	PCM
ENG. MAIN	Main relay
INJECTOR	Fuel injector relay
EVVT	Electric variable valve timing relay
ENGINE1	Electric variable valve timing relay A/F sensor HO2S MAF sensor/IAT sensor No. 1 Intake CMP sensor
ENGINE2	Fuel injector relay Purge solenoid valve OCV PCM Engine oil solenoid valve Exhaust CMP sensor Ignition coil/ion sensor No. 1 Ignition coil/ion sensor No. 2 Ignition coil/ion sensor No. 3 Ignition coil/ion sensor No. 4
ENGINE3	Cooling fan relay
