Parking Brake Lever Removal/Installation: Notes

1. Remove the following parts:
   1. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
   2. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
   3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
   4. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   6. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
   7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
   8. CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
   9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
   10. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   11. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION .)

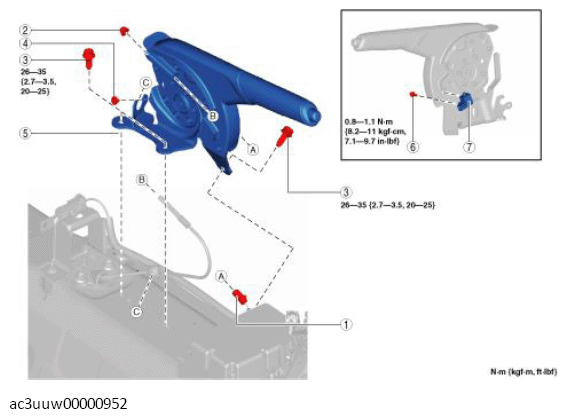

Fig 1: Parking Brake Lever Related Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.
