Front Scuff Plate Removal/Installation: Installation

  1. Align the inner panel with the front scuff plate pins shown in the figure.

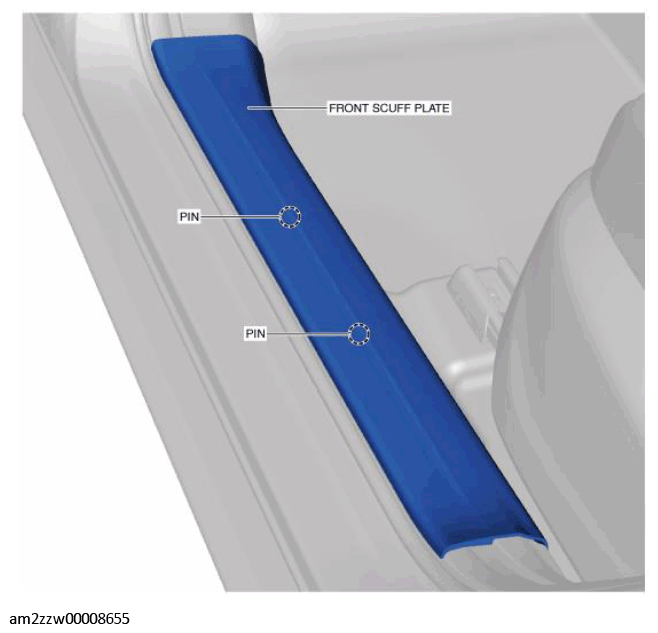

    Fig 1: Aligning Inner Panel With Front Scuff Plate Pins
    G11434529Courtesy of MAZDA MOTORS CORP.
  2. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tabs B to the B-pillar lower trim.

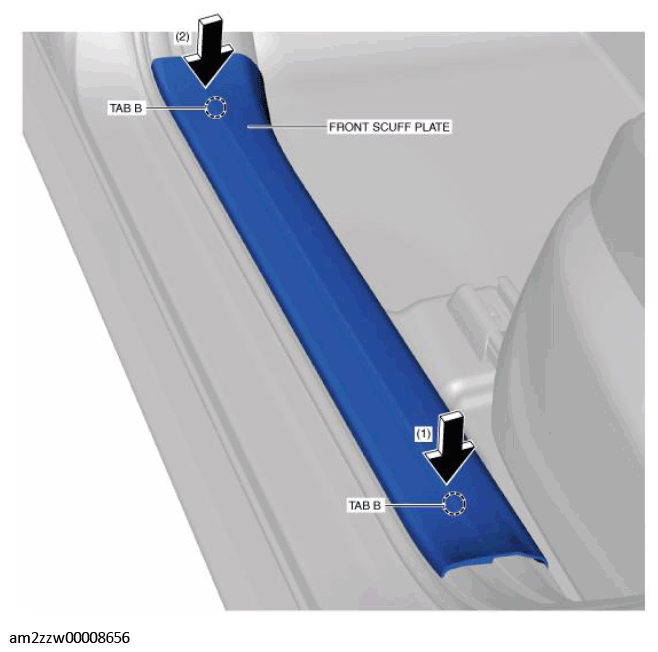

    Fig 2: Pressing Front Scuff Plate
    G11434530Courtesy of MAZDA MOTORS CORP.
  3. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tabs B to the front side trim.
  4. Press the front scuff plate in the direction of the arrows shown in the figure and install the clips to the inner panel.

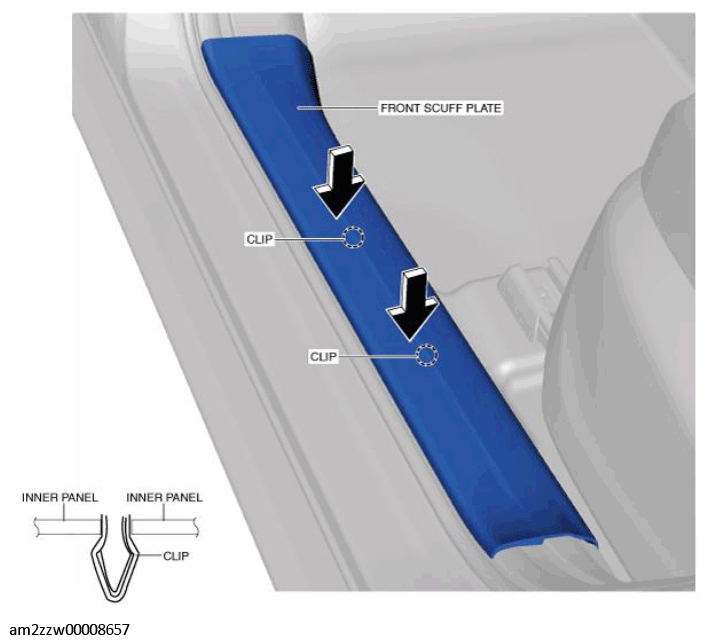

    Fig 3: Pressing Front Scuff Plate
    G11434531Courtesy of MAZDA MOTORS CORP.
  5. Press the front scuff plate in the direction of arrow (1) shown in the figure and install tabs A to the B-pillar lower trim.

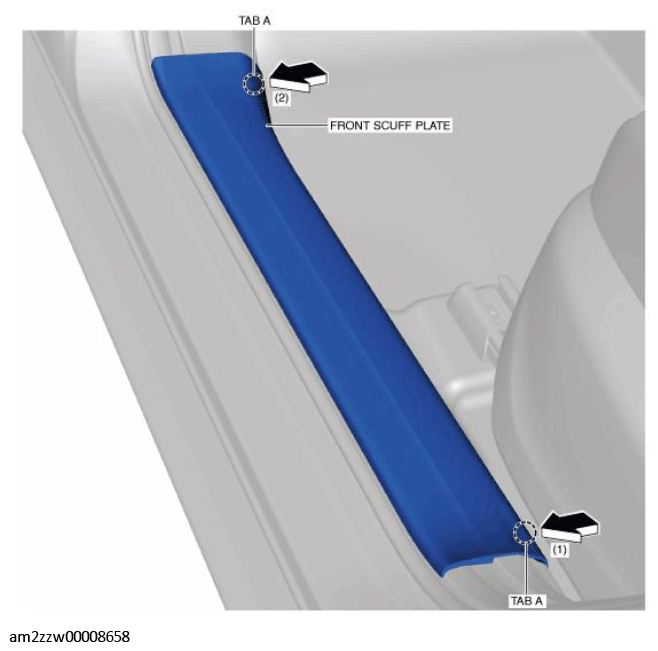

    Fig 4: Pressing Front Scuff Plate
    G11434532Courtesy of MAZDA MOTORS CORP.
  6. Press the front scuff plate in the direction of arrow (2) shown in the figure and install tabs A to the front side trim.
