Foot Support Removal/Installation

  1. Remove the following parts:
    1. Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.
  3. Remove the fastener.

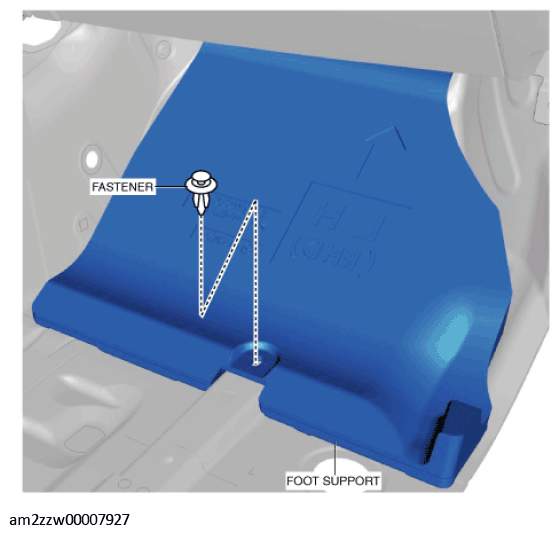

    Fig 1: Removing Fastener
    G11434514Courtesy of MAZDA MOTORS CORP.
  4. Pull the foot support in the direction of the arrow and remove it.

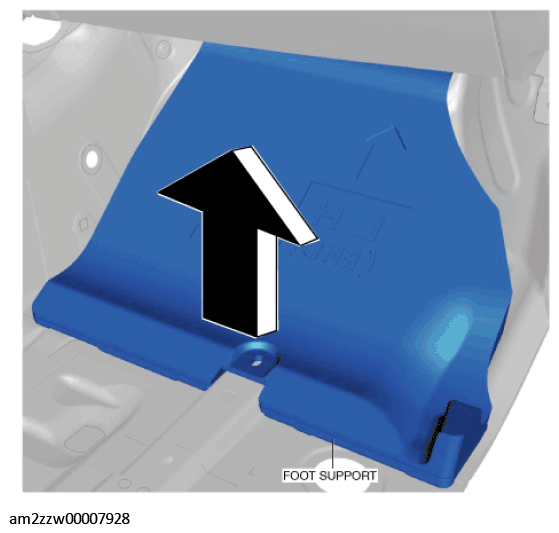

    Fig 2: Pulling Foot Support
    G11434515Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
