DTC B113E-11; Liftgate Opener Switch Circuit Malfunction: Notes
DTC B113E-11; LIFTGATE OPENER SWITCH CIRCUIT MALFUNCTION - DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Liftgate opener switch circuit malfunction |
| Detection condition |
- BCM detects a short to ground in the liftgate opener switch circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Liftgate opener switch connector or terminal malfunction
- Liftgate opener switch malfunction
- BCM connector or terminal malfunction

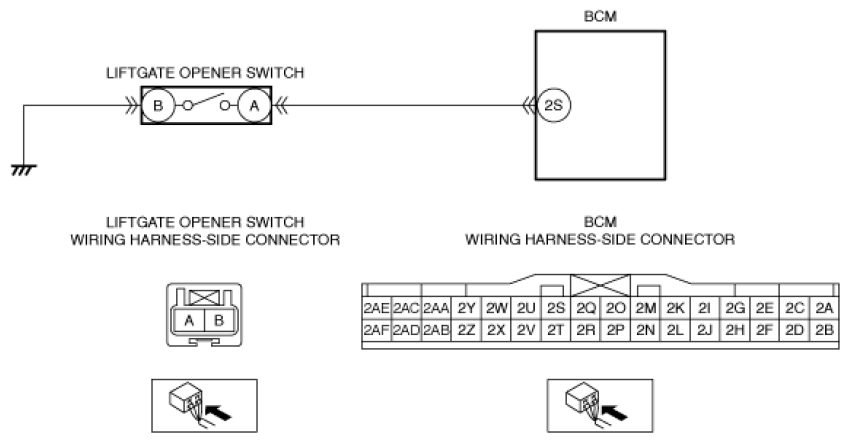

- Short to ground in wiring harness between liftgate opener switch terminal A and BCM terminal 2S
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
