Symptom Troubleshooting - Transaxle
>>
Quick Diagnosis Chart
Quick Diagnosis Chart

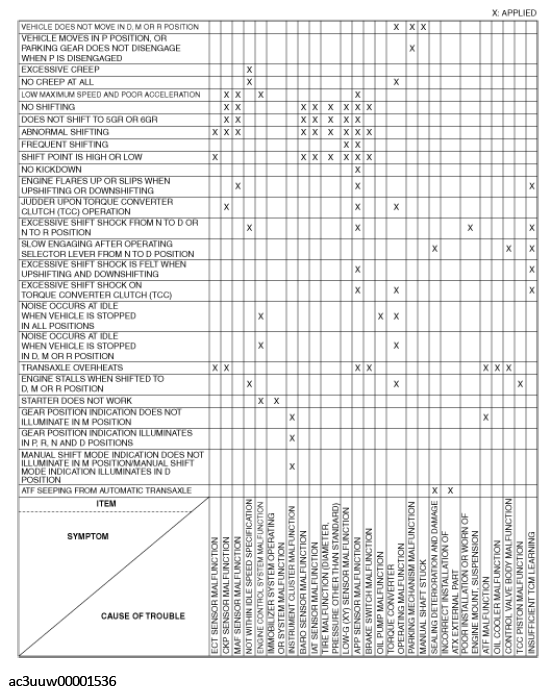

Fig 1: Quick Diagnosis [EW6A-EL/EW6AX-EL] Chart
Courtesy of MAZDA
Courtesy of MAZDA
