Front Brake Mounting Support Removal/Installation (With Single Piston Floating Caliper): Notes
WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
REPLACEMENT PART DESCRIPTION
| Dust boot Quantity: 2 Location of use: Front brake mounting support |
OIL AND CHEMICAL TYPE
| Rubber grease (Orange) Type: NIGLUBE RX-2 |
Brake grease (Brown) Type: Molykote 7439 |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
Courtesy of MAZDA MOTORS CORP.

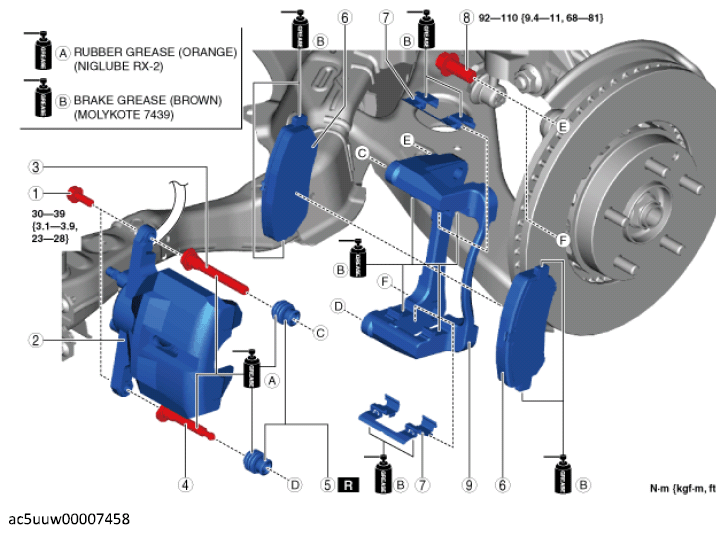

COMPONENT DESCRIPTION1 Bolt 2 Front brake caliper
(See Front Brake Caliper Removal Note .)3 Slide pin (main) 4 Slide pin (sub) 5 Dust boot 6 Disc pad component 7 Guide plate
(See Guide Plate Installation Note .)8 Bolt 9 Mounting support
