Front Brake Mounting Support Removal/Installation (With 2-Piston Floating Caliper): Notes
WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL SERVICE TOOL DESCRIPTION
| 49 G034 204 Support block |
REPLACEMENT PART DESCRIPTION
| Dust boot Quantity: 2 Location of use: Front brake mounting support |
OIL AND CHEMICAL TYPE
| Rubber grease (Pink) Type: Cosmo rubber grease |
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.
Courtesy of MAZDA MOTORS CORP.

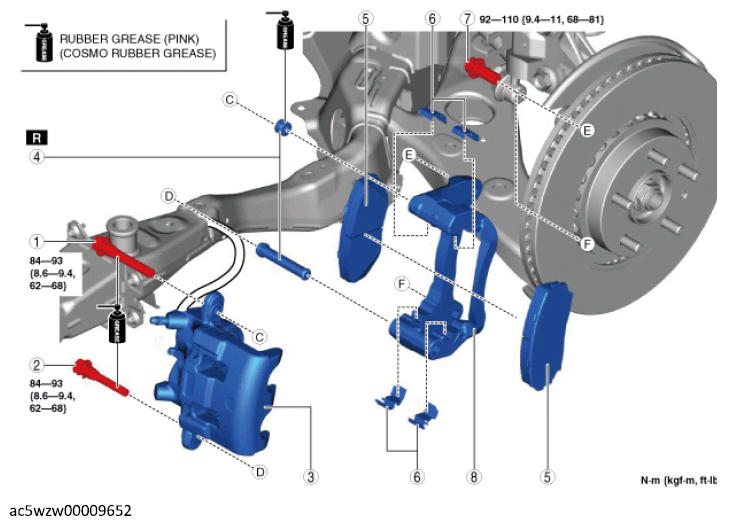

COMPONENT DESCRIPTION1 Bolt (main) 2 Bolt (sub) 3 Front brake caliper
