Foot Light Removal/Installation: Front: Passenger-side

WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

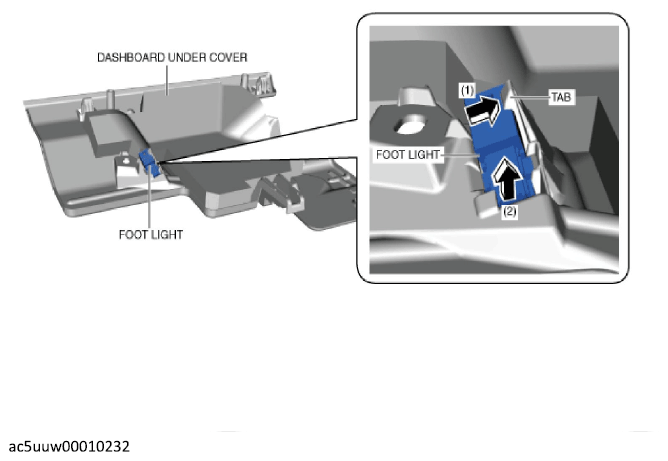

Remove the foot light (2) while pressing the tab (1) in the direction of the arrow shown in the figure.

Fig 1: Removing Foot Light (Passenger-Side)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
