Total Toe-in Adjustment
WARNING: This page is about a different car, the 2018 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

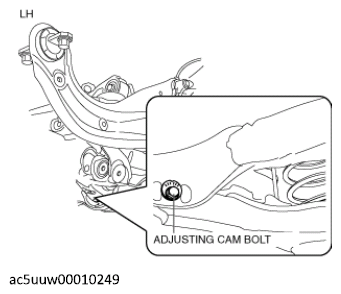

- Loosen the installation nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the Toe-in.
Left Wheel Right Wheel Toe-out direction Clockwise Counterclockwise Toe-in direction Counterclockwise Clockwise - Tighten the nut.
Tightening torque
84-101 N±7m {8.6-10 kgf±7m, 62-74 ft±7lbf}
