Compression pressure [With coolant control valve]

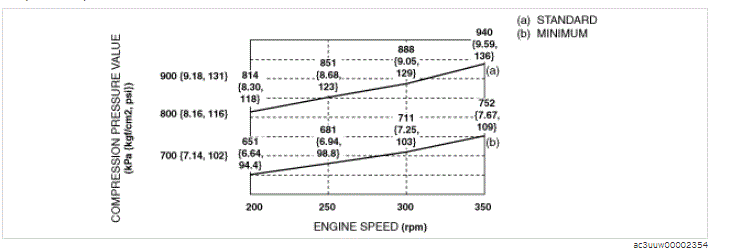

Fig 1: Compression Pressure Value Graph [With coolant control valve]
G00581842Courtesy of MAZDA MOTORS CORP.

Standard: Refer to the graph.

Minimum: Refer to the graph.

Maximum difference between cylinders: 116 kPa {1.18 kgf/cm 2, 16.8 psi} [250 rpm]
