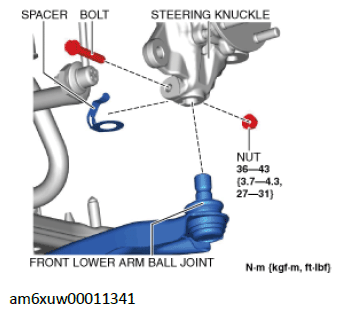

Front Lower Arm Ball Joint Installation Note
- Install the spacer to the steering knuckle before installing the front lower arm ball joint.
Courtesy of MAZDA MOTORS CORP.
- Insert the bolt from the front of the vehicle and tighten the nut to the specified torque.
