Shift Control Module Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Assemble the shift control module using the procedure shown in the figure.

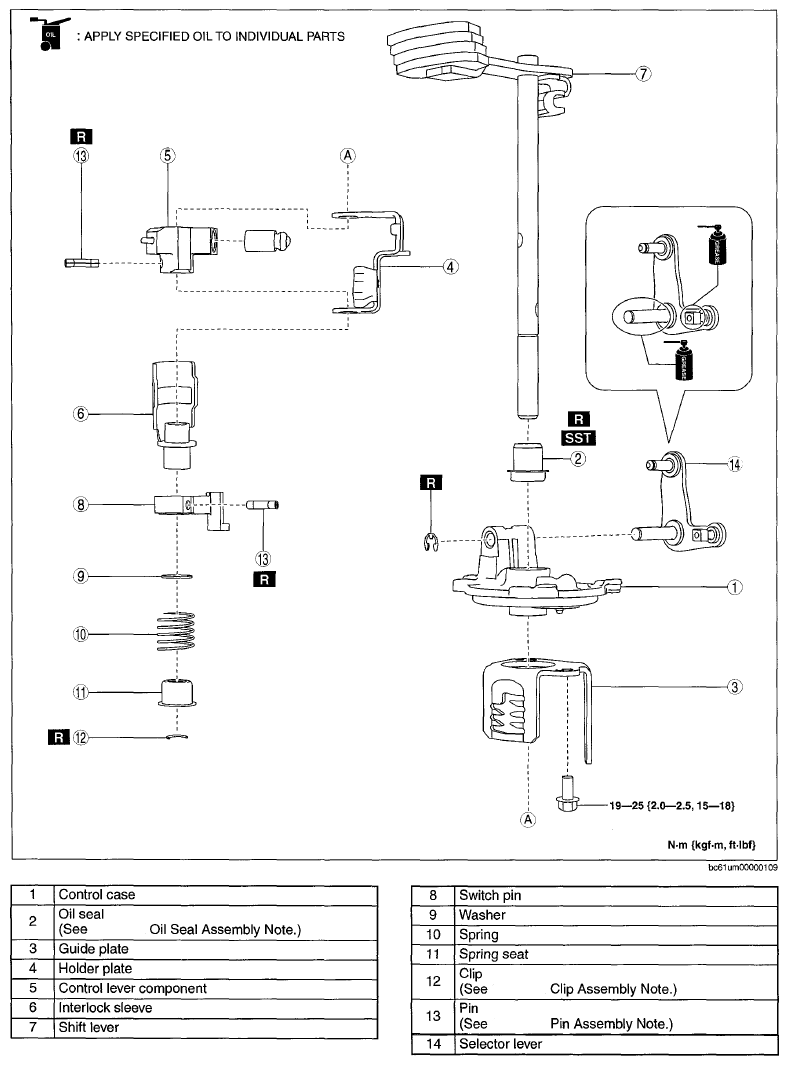

    Fig 1: Shift Control Module Assembling Order With Torque Specifications
    G08347828
