Secondary Shaft Component Disassembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble the secondary shaft component in the order shown in the figure.

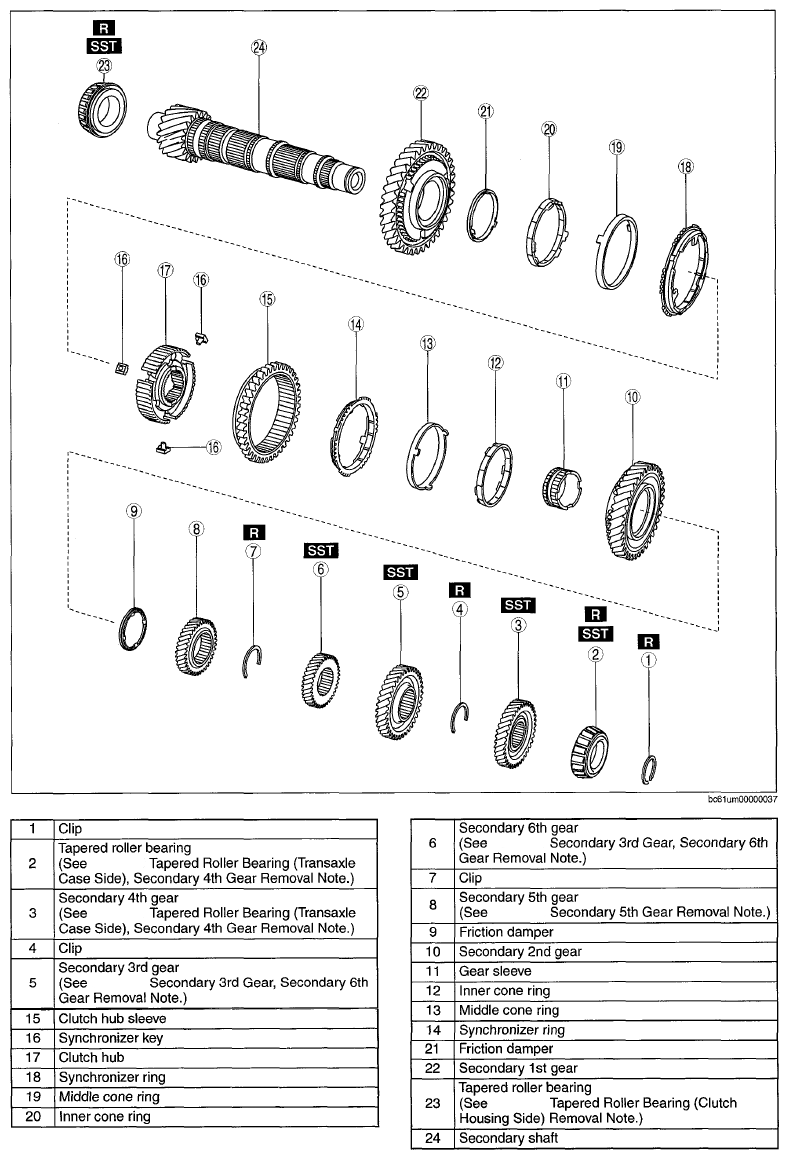

    Fig 1: Identifying Secondary Shaft Component Disassembling Order
    G08347868
