Differential Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Assemble the differential in the order shown in the figure.
  2. Perform the "DIFFERENTIAL BACKLASH ADJUSTMENT". (See DIFFERENTIAL BACKLASH ADJUSTMENT .)

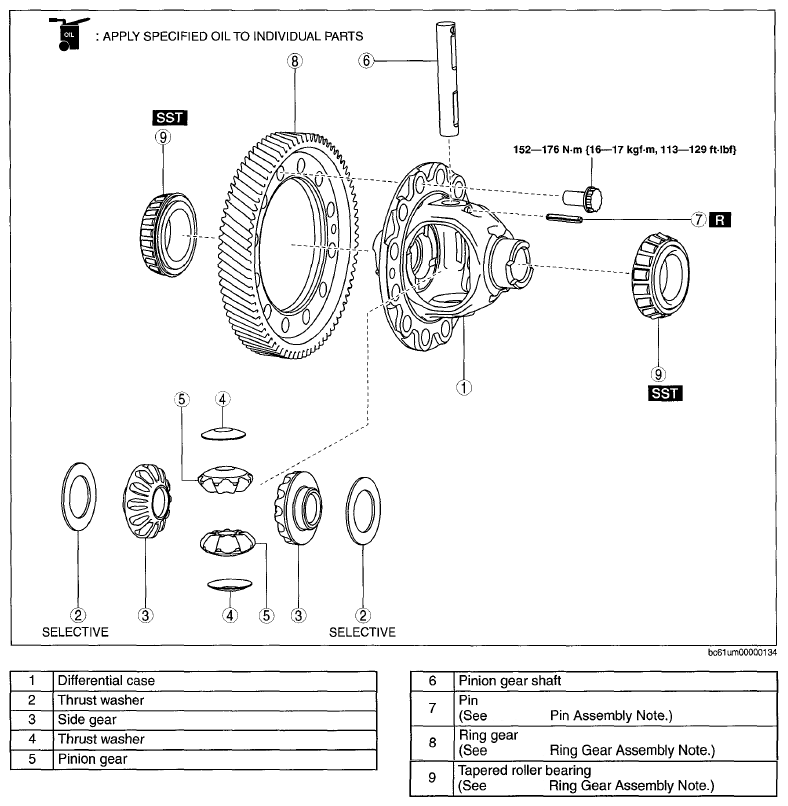

    Fig 1: Differential Assembling Order With Torque Specifications
    G08347916
