EVAP System Malfunction Determination
EVAP System Malfunction Determination
The M-MDS detects small/large leaks or blockage based on the fuel tank pressure at the end of the EVAP test.

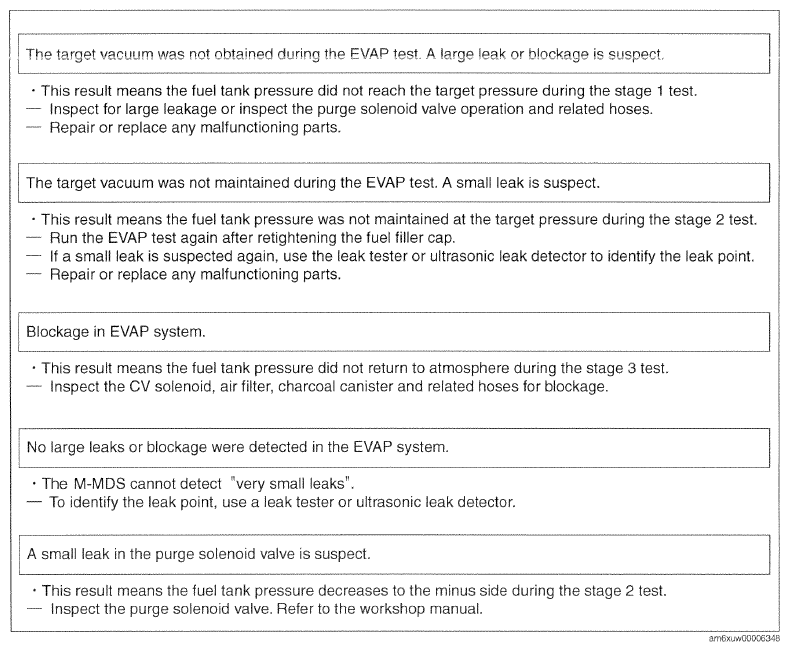

Fig 1: EVAP System Malfunction Determination Description Chart
Courtesy of MAZDA MOTORS CORP.
